"Import Cipher Font (*.CFF)" menu option

Standard, as can be seen in the Font style drop down menu in the main screen, only a limited selection of the most widely used fonts is available. If you want to use any of the other Cipher fonts that are available in Symmetry, you have to import these fonts. Should you wish to have more or other font styles standard available in Symmetry? you can change the list of available fonts through the Preferences menu.

At this time, 45 Cipher fonts are available in Symmetry, most of them being standard European fonts. Additionnally, there are also a Russian (Cyrillic) and Greek font available.

• Acces the Import Cipher Font through the Text menu.
• Select the font style of your choice.

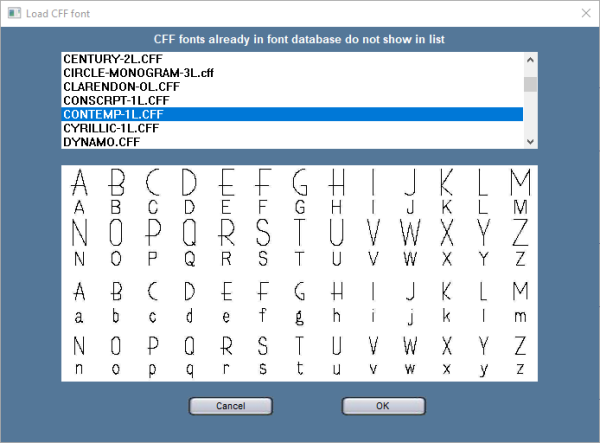

• The top half of the Load CFF font window shows a list of available fonts with a scrollbar on the side.
  The bottom half of of the window is a preview of the selected font.
• When clicking the OK button at the bottom of the window, the selected font will be added to the Font style list at the bottom center of the main screen, and will automatically be applied to the current text line.

• When choosing the Text menu, you will notice that the top two menu options allow you to import fonts: either Cipher fonts, or TrueType fonts. Both font types are fundamentally different: Cipher fonts were designed specifically for engraving purposes and come only with Symmetry and its predecessor, Cipher, while Truetype fonts are fonts for layout and printing purposes and come with a wide array of layout and design softwares, such as MS Word, CorelDRAW, Adobe Illustrator, etc.


• Among the available Cipher fonts, there are some outline fonts, single-line fonts, and multiple-line fonts. TrueType fonts will always start as outline fonts. If you want to engrave them, not as outline characters, but filled out, you need to apply the Object Fill and Tool dimensions menu option after typing in your text. As explained in the Object Fill and Tool dimensions in this manual, the outline of the text will consequently be filled using the “island fill” method.
  You should be aware that, in comparison with similar multiple-line fonts, filled out Trueype texts take much longer to engrave. You can slight influence this by choosing a wider cutter tip, but only to a limited degree.
